Vapor permeability (measured in perms) describes an insulation material’s ability to let water vapor pass through it. High-perm materials (≳10 perms) allow lots of moisture flow, while low-perm materials (≲1 perm) block vapor. Why does this matter? In any climate, buildings get wet from rain or indoor humidity, and trapped moisture can condense, lower insulation R-value, and foster mold or rot. Proper vapor control and breathable insulation help assemblies dry and stay durable. This guide explains how perm affects wall/roof design, comparing materials (e.g. PowerWool™ mineral wool vs foams and offering climate-appropriate insulation strategies.
What is Vapor Permeability?

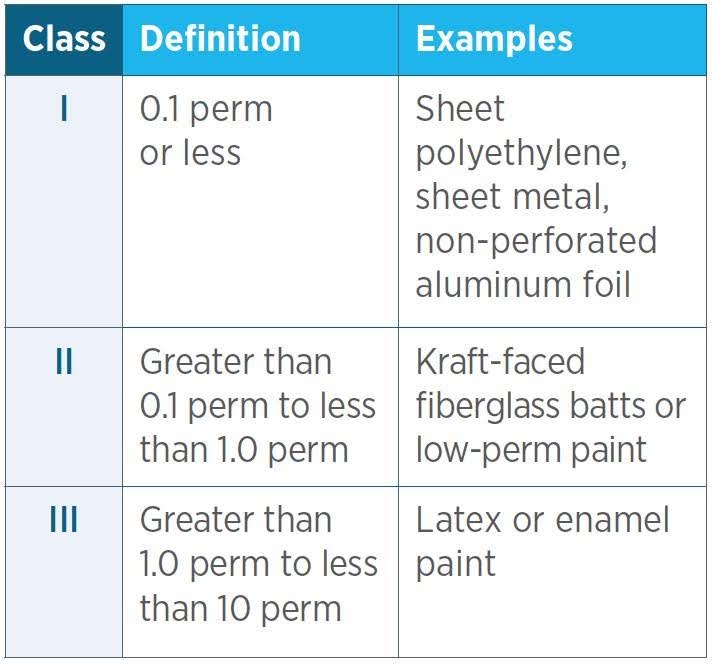

“Vapor permeance” (perms) is defined as the amount of water vapor that passes through 1 square foot of material (1 inch thick) per hour under a 1 inch Hg pressure difference. Building Science Corp. defines materials as impermeable (Class I: ≤0.1 perm), semi-impermeable (Class II: 0.1–1 perm), semi-permeable (Class III: 1–10 perms), or permeable (>10 perms). In practice, mineral wool and cellulose fiber are highly permeable (>10 perms), whereas foil-faced foams and closed-cell spray foams are Class I and virtually vapor-blocking.
Why Vapor Permeability Matters
Because water always seeks a drier place, moisture inevitably moves toward the cold side of a wall or roof. In cold climates that means warm, moist indoor air drives vapor outward; in hot-humid climates the opposite occurs (vapor moves inward). Unchecked vapor drive can lead to condensation within wall cavities, significantly reducing insulation R-value and causing mold or rot. Conversely, using vapor-permeable insulation (like PowerWool™ mineral wool) lets assemblies dry in either direction, reducing trapped moisture. In other words, permeable insulations (and vapor-open assemblies) promote moisture control, drying potential, and durability. For example, PowerWool’s RigiBoard® lets moisture escape from walls, whereas a foil-faced foam on the same wall would trap moisture. Staying dry also protects thermal performance: wet insulation has dramatically lower R-values and can encourage mold.

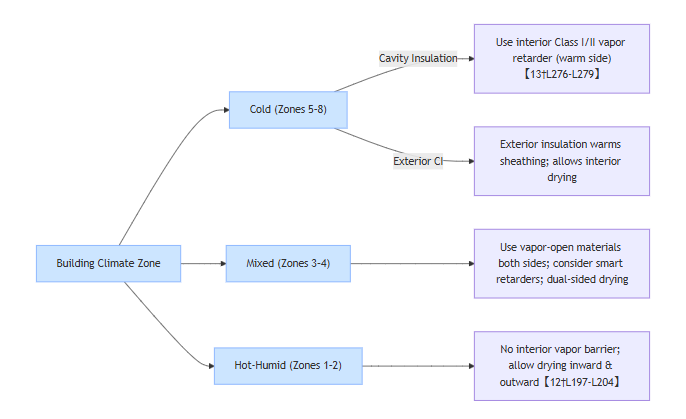

Climate Considerations
Cold climates (Zones 5–8) – Heat and moisture move outward. Code typically calls for an interior vapor retarder (Class I or II) to protect wall cavities. Exterior insulation (e.g. PowerWool RigiBoard™) can warm the sheathing and reduce condensation risk, as long as an interior low-perm layer is placed on the warm side. For example, RigiBoard (mineral wool) at 1.5″ thickness has ~35.6 perms, while foil-faced polyiso at the same thickness is only ~0.03 perms.
Mixed climates (Zones 3–4) – Vapor drives can reverse seasonally. Use balanced designs (permeable layers both sides) and consider “smart” vapor retarders that adapt. Ensure any vapor barrier placement does not trap moisture; use rainscreens/ventilated cladding to help assemblies dry outward.
Hot-humid climates (Zones 1–2) – Moisture primarily moves inward. Avoid Class I interior barriers and favor high-perm materials (foil-faced foam is discouraged). Studies show using permeable WRBs does not increase inward vapor drive, and dual-sided drying is recommended. In practice, give roof/wall assemblies a clear drainage plane and use insulations like mineral wool or cellulose that allow vapor movement.

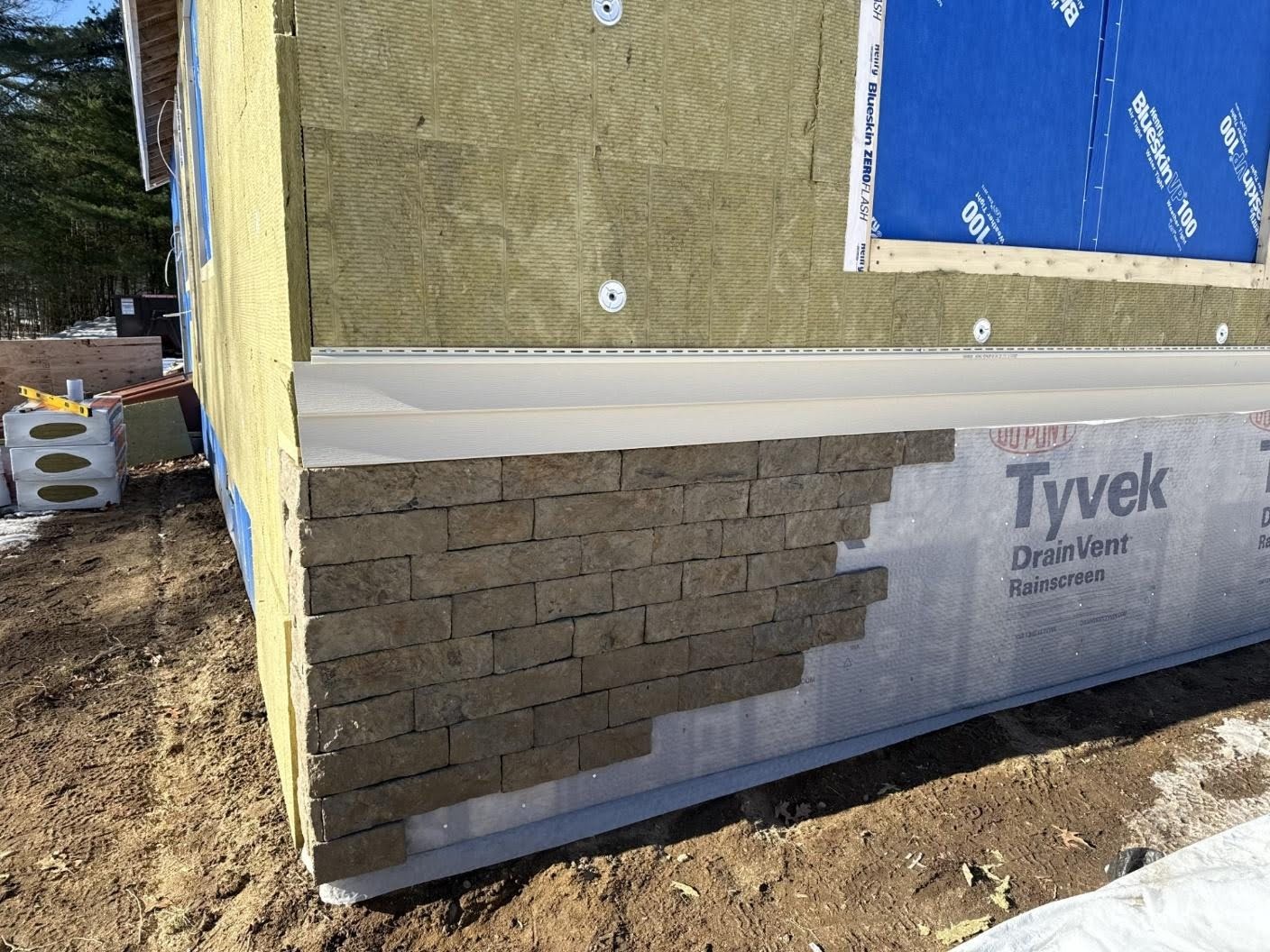

Assembly Types & Best Practices
- Continuous Exterior Insulation (CI): Placing insulation outside the sheathing (with a weather-resistant barrier and rainscreen) greatly reduces interior condensation risk and thermal bridging. When using CI (like RigiBoard™ and CavityBoard™), the exterior insulation layer is typically vapor-open, so most drying occurs to the interior. Ensure a well-sealed (taped) air barrier under the CI to prevent bulk moisture. Properly terminate the insulant at floor lines and edges to allow any condensation to drain.
- Cavity Insulation (between studs/joists): Here vapor can move either way. In cold climates, add an interior Class I/II vapor retarder on the warm side to limit outward flow, this Class I/II vapor retarder is not needed if using CI at the proper ratio based on the climate zone. In hot-humid climates, you generally do not add an internal vapor barrier, and may instead rely on a good exterior drainage plane and ventilated cladding. Using vapor-open insulation (mineral wool or cellulose) in cavities helps the wall dry whether the moisture comes from inside or outside.
- Vapor Barriers/Retarders: Always select placement based on climate. For example, code mandates Class I or II interior retarder in cold U.S. zones (5–8), but advises against impermeable barriers in hot-humid zones. Note: “Class II/III (like kraft-faced fiberglass) are fine almost anywhere, but full barriers (e.g. foil) should be used cautiously.” Even a “smart” membrane or a polyethylene sheet must be sealed meticulously (taped) or else moisture-laden air can bypass it and condense elsewhere.
- Rainscreens/Vented Cladding: Incorporate a ventilated cavity between siding and sheathing wherever possible. This helps evaporate any water that gets in and relieves inward vapor drive. Vented facades are especially important in humid climates.
- Air-Sealing and Detailing: Air leaks drive 90% of water vapor, so ensure insulation is installed airtight. Seal all seams, penetrations, and framing. If rigid foam is used, tape all joints. Always think continuity: even a small gap in a vapor barrier or insulation can lead to condensation pockets.
Insulation Permance Comparison
| Insulation Type | Vapor Permeance (perms per 1″) | Typical Class | Notes |
|---|---|---|---|
| PowerWool RigiBoard™ | ~24 (1.5″ = 35.6) | >10 (Highly permeable) | Mineral wool, continuous board |
| PowerWool CavityBoard™ | ~19 (1.5″ = 29.0) | >10 | Mineral wool board for cavity/rainscreen |
| Cellulose (dense pack) | ~5 | 1–10 (Class III) | Blown fiber, moisture-tolerant |
| Mineral Wool Batts | ~30 | >10 | Mineral wool batts (highly permeable) |
| Open-Cell SPF (½–1.0 lb) | ~5–10 | 1–10 (Class II/III) | Very vapor-open at common fill |
| Closed-Cell SPF (2.0 lb) | ~0.5 | ≤1 (Class I/II) | Semi-rigid foam, retards vapor |
| Polyiso, foil-faced (1″) | 0.03 | ≤0.1 (Class I) | Very impermeable |
| Polyiso, paper-faced (1″) | 1–10 | 1–10 (Class III) | Depends on facer type |
| Extruded Polystyrene (XPS) | ~0.5–1.1 | ~1 (Class II) | Semi-impermeable foam |
| Expanded Polystyrene (EPS) | 2.0–5.8 | 1–10 (Class III) | Permeable unless foil-faced |
| Wood Fiber Board | ~15–30 (varies) | >10 | Very permeable (e.g. ~26) |
Chart 2: Vapor permeance of common insulations. PowerWool™ (mineral wool) boards are very vapor-open, while foil-faced foams and closed-cell foams are nearly impermeable.
Choosing Insulation by Climate & Assembly
Cold climates: Use continuous insulation on the exterior (like PowerWool RigiBoard™) to keep sheathing warm. On the interior, use a Class I/II retarder (e.g. 6 mil polyethylene) to block outward vapor drive. Cavity-fill can be mineral wool or fiberglass (Class III) with kraft facing, allowing drying to the exterior. Avoid double-airtighting (e.g. no interior polyethylene if you already have a closed-cell foam on the exterior).
Mixed climates: Favor vapor-open designs. Cavity insulation can be cellulose or unfaced mineral wool, with no continuous interior barrier (or use a smart membrane). Allow drying both inward and outward by providing permeable sheathing coverings and rainscreen. A “vapor-open” WRB (housewrap) and ventilated cladding help a wall dry in either season. The 4 season wall assembly also uses PowerWool RigiBoard™ or PowerWool CavityBoard™ on the exterior of the building, outside of the WRB.
Hot-humid climates: Don’t install interior vapor barriers (no foil/poly inside). Use highly breathable insulation (cellulose or mineral wool) and ensure abundant exterior ventilation. Consider putting a Class II/III vapor retarder on the exterior sheathing if code requires, but generally allow moisture to escape back outside. Maximize drying: e.g. an over-roof or ventilated attic, and employ vapor-open insulation so the assembly can dry inward if needed. This climate zone can also utilize only exterior mineral wool insulation like PowerWool RigiBoard™ or PowerWool CavityBoard™ as code now shows that you can go with only exterior insulation (0+10)

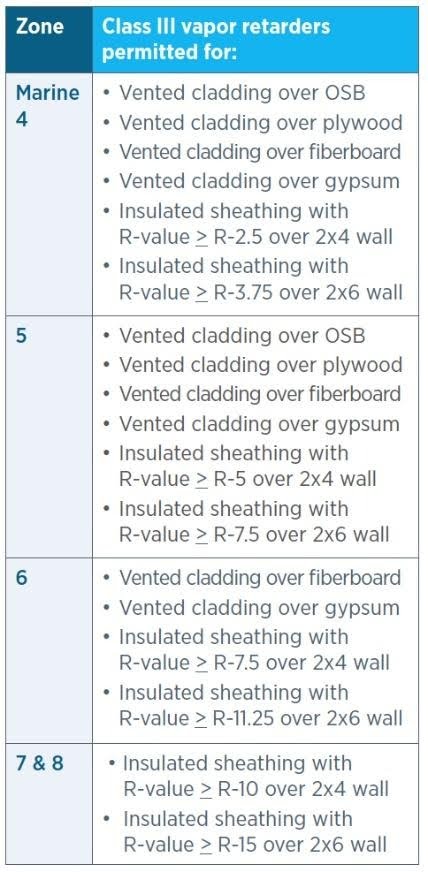

Chart 3: Class III vapor retarders can be used in northern climates with many exterior options. This is ultimately to reduce condensation on the back of the phase change material (sheathing) *building-code table from the International Building Code (IBC) / International Residential Code (IRC) family
Common Misconceptions & FAQs
- “My wall needs a vapor barrier.” Not in all climates! The old idea of a one-size-fits-all vapor “barrier” (foil or 6 mil plastic) has been largely abandoned. Today, design per climate: Cold zones sometimes need an interior Class I/II retarder, hot-humid zones often should avoid a barrier. The key is controlling moisture sources and ensuring a drying path. Air control and thermal control is needed in all climates, when using both on the exterior the need for only a vapor throttle is needed (Class III vapor retarder)
- “All insulation must be vapor-proof.” No – in fact, using vapor-blocking foam everywhere can trap moisture. Mineral wool is valued for being vapor-permeable. A vapor-open wall assembly (with regulated air leakage) is usually safer long-term because it dries out.
- “A little air gap is enough.” Gaps or unsealed seams in foam or vapor retarder might seem like they add “breathability,” but they mostly just allow uncontrolled air flow. Real permeability must come from the material itself, not random holes.
- “Vapor-open means no drying needed.” Even the most permeable walls need a drainage plane and proper detailing. Vapor-open materials allow drying, but only if moisture is first controlled. Good practice is always to provide an air gap or rain screen exteriorly and avoid saturating insulation in the first place.
- “Foil-faced foam is best for insulation.” Foil facing severely limits drying (∼0.03 perms). In hot climates this can cause inward drive condensation. Foil-faced foam is more suited to cold or semi-conditioned spaces where it’s on the warm side, and even then only with an interior vapour retarder.
Suggested PowerWool links: For more on products and applications, see PowerWool RigiBoard™ (CI), CavityBoard™, and our application guides: Below Grade, Exterior Wall, and Roof for examples of vapor-permeable insulation in use.
