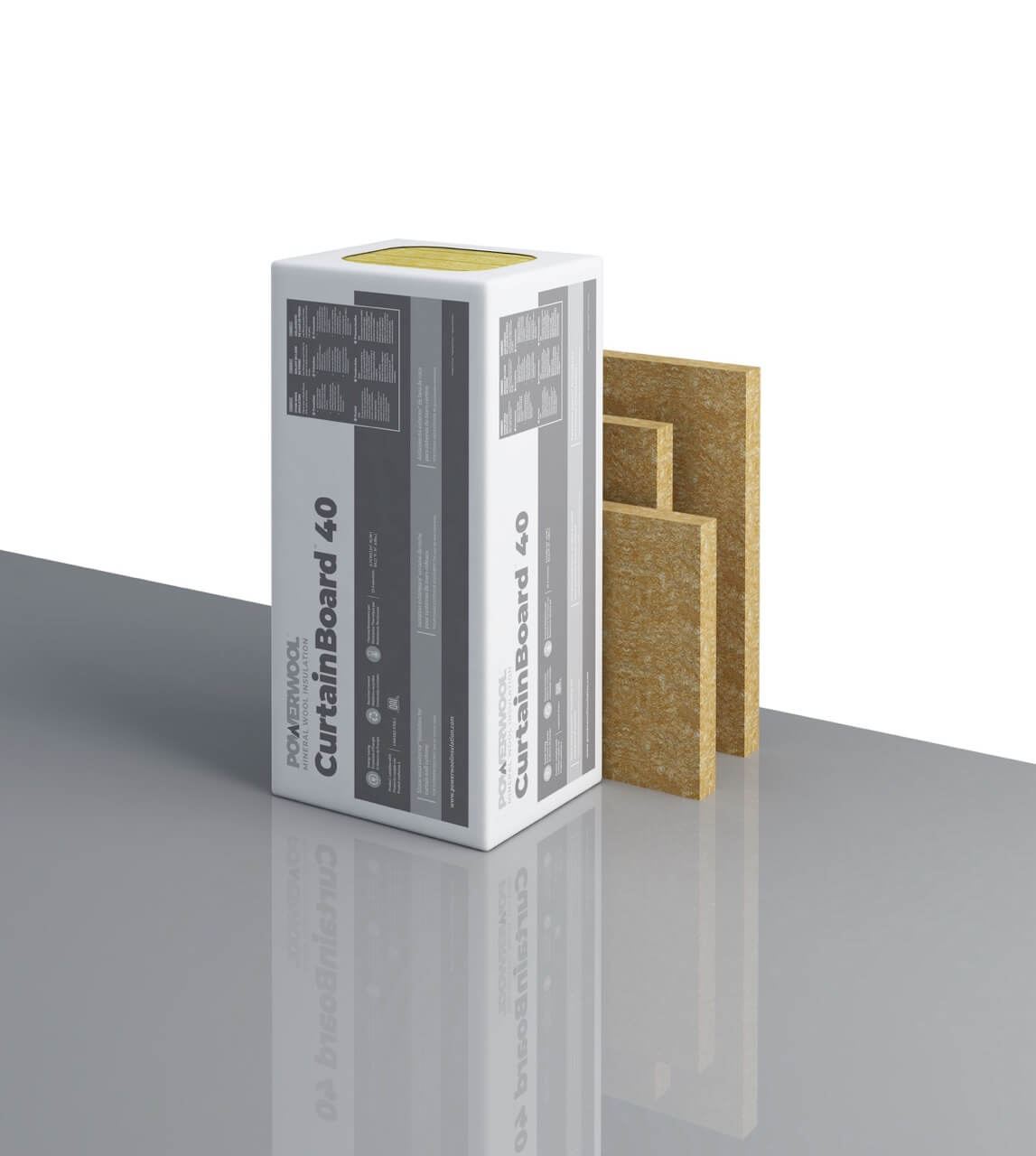

Curtainboard™ 40 is a semi-rigid mineral wool insulation board built for curtain wall systems that call for added density.
Strengthen your building envelope with PowerWool™ Curtainboard™ 40, a semi-rigid mineral wool insulation board engineered for durability, fire protection, and long-term thermal performance.
Designed for curtain wall systems, Curtainboard™ 40 delivers dependable performance with a step up in density from standard Curtainboard. At 4 lbs/ft³ and available in thicknesses from 1″ to 8″ and panel sizes up to 36″ x 48″, it offers a balanced option for assemblies that need a bit more body without moving to a high-density board.
PowerWool™ Curtainboard™ 40 helps create safer, quieter, and more resilient buildings by resisting fire, repelling moisture, and maintaining stable R-4.2-per-inch thermal performance over time. It’s approved for use in Canada and the U.S., and suitable for substitution in rated NFPA 285 and ASTM E119 wall assemblies.
| CHARACTERISTIC | RESULT | TEST STANDARD |
|---|---|---|
| Compliance | Mineral Fiber Block and Board Thermal Insulation – Compliant Mineral Fiber Thermal Insulation for Buildings – Compliant |
ASTM C612 CAN/ULC S702.1 |
| Reaction to Fire | Flame spread index = 0; Smoke developed index = 0 Flame spread index = 0; Smoke developed index = 0 Determination of Non Combustability of Building Materials – Non Combustible Behaviour of materials at 750°C – Non Combustible |
ASTM E84 (UL 723*, NFPA 255*) CAN/ULC S102 CAN/ULC S114 ASTM E136 |
| Density | 4 lbs/ft³ (64 kg/m³) – Actual Density | ASTM C303 |
| Dimensional Stability | Linear Shrinkage = Pass @1200°F (650°C) | ASTM C356 |
| Corrosion Resistance | Corrosion of Steel – Passed | ASTM C665 |
| Thermal Resistance | R-Value / inch @ 75°F — 4.2 hr.ft².F/Btu RSI value / 25.4 mm @ 24°C — 0.74 m²K/W |
ASTM C518 |
| Reaction to Moisture | Moisture Sorption – Pass Water Vapor Transmission, Desiccant Method – 1670ng/Pa.s.m² (29 perm) Determination of Fungi Resistance – Passed |
ASTM C1104 ASTM E96 ASTM C1338 |
| Dimensions | 1″ (25.4 mm) to 8″ (203.2 mm) in ½″ increments 16″ × 48″ (406 mm × 1219 mm) 24″ × 48″ (610 mm × 1219 mm) 36″ × 48″ (914 mm × 1219 mm) |
PowerWool™ CurtainBoard™ is engineered for commercial and high-rise construction, including:
Sizes Available: All boards are 24″x48″ in size ranging in thickness from 1″ to 8″ thick
Non-combustible mineral wool insulation, rated zero flame spread and zero smoke developed, for maximum safety in demanding environments.
